Agusta 109 Power Elite

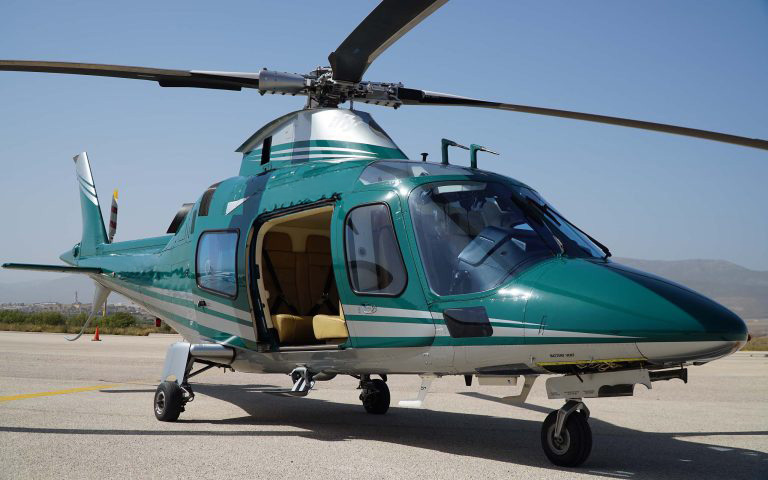

Design and Configuration:

• The AW109E Power Elite features a sleek, aerodynamic design with a four-blade main rotor and a two-blade tail rotor.

• It is equipped with retractable landing gear, which enhances its speed and fuel efficiency while giving it a streamlined appearance.

Performance:

• Engines: Powered by two Pratt & Whitney Canada PW206C turboshaft engines, each delivering 567 kW (760 shp). These engines provide excellent power-to-weight ratio and reliability.

• Speed:

  • Maximum cruise speed: 285 km/h (177 mph).

  • Maximum speed: 311 km/h (193 mph).

• Range: Approximately 965 km (600 miles) with standard fuel tanks.

• Ceiling:

  • Service ceiling: 6,100 meters (20,000 feet).

  • Hover ceiling (in ground effect): 4,572 meters (15,000 feet).

Capacity:

• Passengers: Can accommodate up to 6-7 passengers in a luxurious, customizable cabin.

• Crew: Typically operated by 1 or 2 pilots.

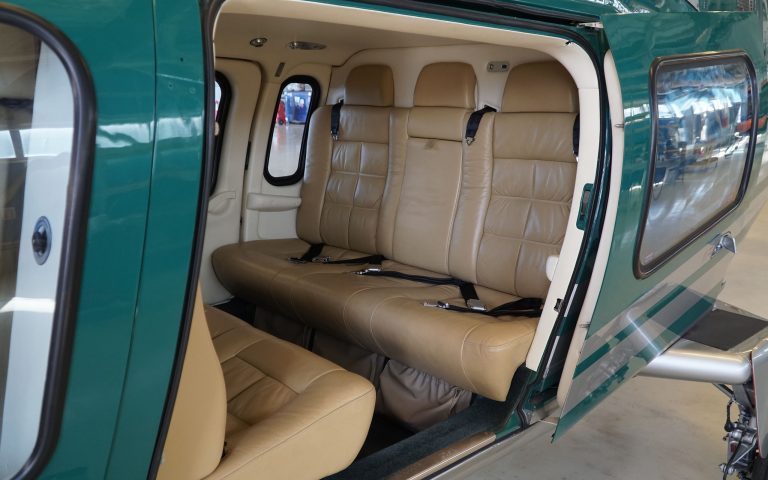

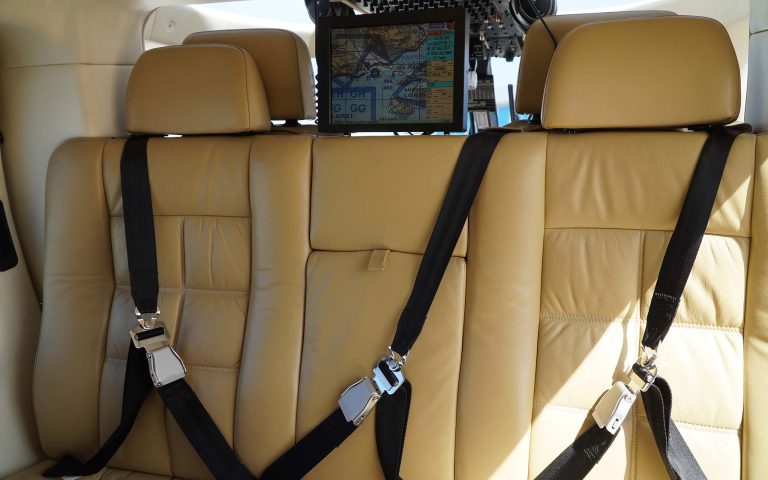

Cabin and Comfort:

• The cabin is designed for executive luxury, featuring high-end materials, ergonomic seating, and ample space.

• It offers a quiet and comfortable environment with advanced soundproofing and climate control systems.

• The cabin can be customized with various layouts, including executive seating, conference tables, and entertainment systems.

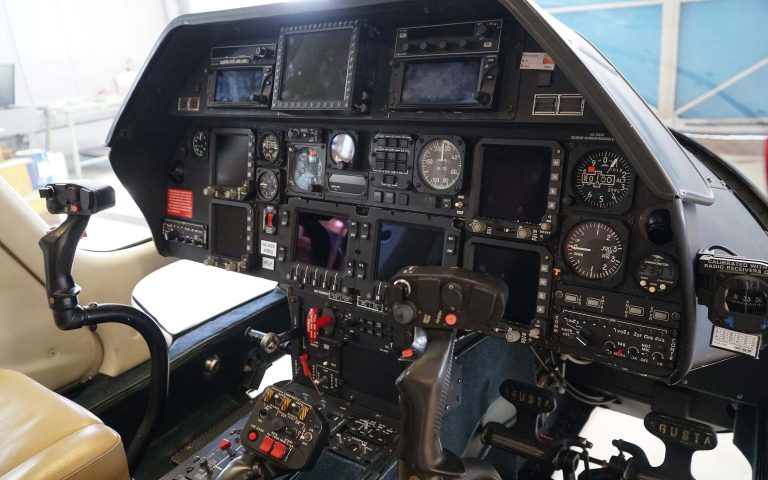

Avionics:

• Equipped with a state-of-the-art glass cockpit featuring Rockwell Collins Pro Line 21 avionics.

• Includes advanced navigation systems, weather radar, autopilot, and multi-function displays for enhanced situational awareness and safety.

Safety Features:

• Redundant systems for critical components, including dual hydraulic systems and dual digital automatic flight control systems.

• Crash-resistant fuel tanks and energy-absorbing seats for added safety.

Versatility:

• While primarily designed for VIP and corporate transport, the AW109E Power Elite can also be configured for other missions, such as EMS (Emergency Medical Services) or law enforcement.
